Em-Poxy 420 Epoxy Repair and Anchorage Paste

Deacription
A triple component anchorage, fixing and filling mortar, containing epoxy resin, hardener, and filler. First type is for horizontal applications with fluid form and other one is for vertical applications with thixotropic properties.
Usage Areas
• To fix iron stones and bolts into concrete and rocks.
• To fill quilting seam holes.
• To repair columns, shear walls, and joists.
• To fill and fillet mortar in joint insulation.
• Thanks to its high resistance and superior adherence characteristics, it offers excellent results in patching and repairing landing fields and field concrete.
Advantages
• Extremely resistant to corrosion and chemicals.
• Resistant to vibration.
• Does not contract.
• Waterproof and gasproof.
• Allows rapid loading thanks to rapid curing.
• Has high resistance and adherence.
• Very easy to apply.
• Used in overhead and horizontal applications.
Application
• The concrete must be highly durable and resistant. The dimesions of the holes must be 15 times bigger then anchorage irons.
• Holes must be cleaned up by air pressure, and they must be free from grease, dust, dirt, plastic particles and water.
• Anchorage irons must be ribbed, dry, and free from grease and rust. Product components are dosed according to the amount required.
• The hardener is poured into epoxy, and to avoid air bubbles, it is mixed by using a low speed mixer (400 rpm) until it reaches a homogenous gray color.
• The mixture is poured into cartridge and pressed into holes. Pot life must be considered in order to prepare just the required amount of mixture. Because it does not contain any solvent, it cannot be diluted with thinner.
• During application the temperature must be +5°C minimum.
Consumption
1,4 kg/dm3.
For example, to ore Ø16 mm iron (into Ø20 mm hole), approximately 50 g of Em-Poxy 420 is required.

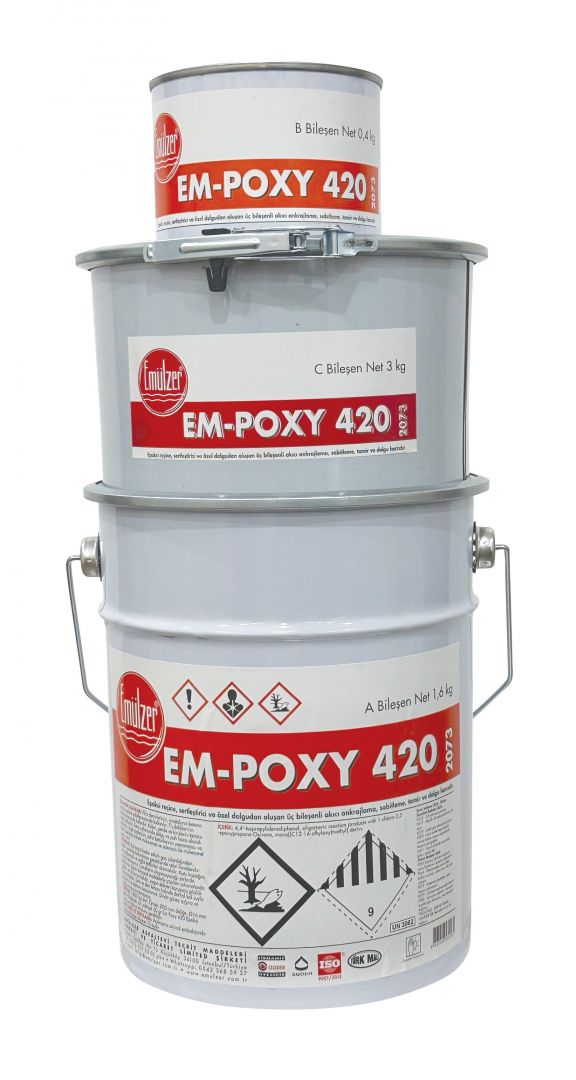

Packaging
1,550 kg Resin (Component A)
0,350 kg Hardener (Component B)
3,100 kg Filler (Component C) = 5 kg Set - 72 Sets/Pallet



Color                          : Grey
Density                      : 1,4 kg/dm3
Compressive strength  : 75 MPa
Adhesion to concrete   : >4 MPa (Breaking)
Work Time                  : 30 min. (+30°C)
Initial setting               : 8 Hrs. (+30°C)
Loading capacity         : 24 Hrs. (+30°C)
Bond Strenght             : 7 days
