Punto Drain PK

Description
It is a high-density polyethylene (HDPE) plate used for protecting drainage and insulation.
Usage Areas
• Protecting insulation against mechanical damage which may occur during backfilling, and then against chemicals found in the soil,

• Ensuring air circulation,

• Removing accumulated excessive water fastly,

• Preventing humidity raise from under the foundation by capillary action,

• Foundation curtains, foundations, floors, garden terrace applications, tunnels, water channels, railways and highways.

• For repairing all types of structural concrete,

• For mounting and adhering all types of metal elements onto concrete or steel elements.
Advantages
• Very economical compared to other insulation protection methods such as briquet wall or polystrene foam.

• Because it is manufactured up to 3 meters in width and up to 30 meters in length, there is no loss of material resulting from overlap.

• Easy to apply.

• Resistant to plant roots and decay.

• Thanks to more than 1200 blisters/m2 ensures a homoge- nous distribution of the soil load.

• Blistered structure contributes to thermal insulation.

• Contributes to sound insulation in interior applications.

• Ensures rapid drainage of ground water thanks to 5,8 litres /m2 of air gap created between the plate and the surface.

• Ensures air circulation for damp surfaces to dry.
Application
Curtain: Depending on the height of the surface to be applied Puntodrain can be used widthwise or lengthwise. The application starts from 15 cm higher than the end point of the insulation and from the corners. The insulation must not be damaged during mounting. Mounting pins, nails or another type of compatible profiles can be used for mounting.

Packaging

Width: 2 m - 2,40 m - 3 m

Length: 20 m - 25 m - 30 m

Puntodrain PK

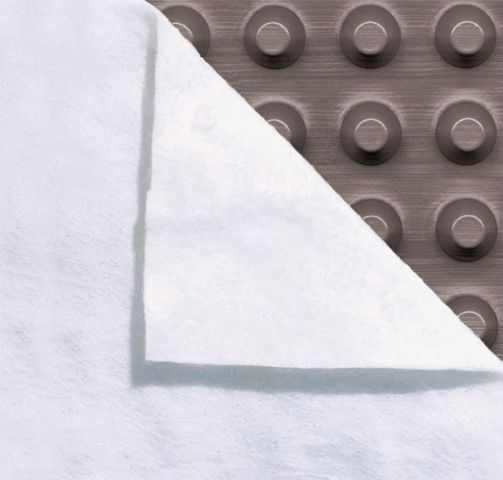

Drainage and insulation protection plate with felt
